How To Build A Shed Ramp

shed ramp in ohio and pa

Building a shed ramp can seem like a daunting task, but we are here to walk you through each and every step! Before you head to the lumber yard or Home Depot, check out the first step in building a ramp for a shed so that you can have the necessary tools for the job. But first, let’s start with the price.

How Much Does It Cost To Build A Ramp For A Shed?

shed ramp

Photo credit: Source

A shed ramp can cost anywhere from $250-$1000 to build. It is an extensive range because there are a lot of different choices when it comes to your shed ramp. The size, material, and density are just a few. Here is a little bit more of a cost breakdown for shed materials.

Wood $200 – $500
Aluminum$500 – $750
Concrete$600 – $1000

Step 1: Shed Ramp Tools

You will need the following tools:

Tape Measure

Drill/Bits

Table Saw/Miter Saw

Level

You will need the following supplies:

Lumber

Slats or Decking Board

Exterior Screws

tools to build shed ramp

Photo credit: Source

Step 2: Purpose & Planning

What are you going to be using your shed for? What is the ramp going to be holding most of the time? This is going to help you determine the size of your shed ramp. If you are using it for a simple tractor, you can get your measurements from that tractor. If you are going to be using it for various pieces of equipment and machinery, measure to the largest one.

Step 4: Cut Your Pieces

building 10x12 sheds efficiently

Now that you have finished planning and know your shed ramps’ purpose, it’s time to begin cutting your pieces. You should have;

  • Ledger Board (the length of the shed door opening)
  • 4 Joists (the length you decided for your ramp – Ledger board + End Piece)
  • Braces If Needed (If your shed ramp is longer, you may want some extra support on the ground side of the joists)
  • Deck Ramp Pieces / Slats

Step 3: Determine Slope

shed ramp slope

Not all sheds are situated on flat ground. Your shed may have a slope running in any direction from where it was placed. To begin constructing your shed ramp, you need to determine the angle that will be best for your ramp. By now, you should know how long you want your ramp to be, so follow these steps to determine slope and angle.

  • Take your joist board over to the base of your shed
  • Start by Measuring 1” down your board for every 4’’ long (ex; measure 3” down if your ramp is 1 foot long)
  • Then tailor your angle by where your shed is placed. If you need to vary from the 1:4 because your ground isn’t as sloped, make your adjustments now.
  • Cut Your angles on each of your joists.

Step 5: Excavate

Now, you can remove some of the dirt around the bottom section of your ramp. Create a space where it can have a snug fit. Make sure you check the level of your joists so that they are even with each other after excavation.

Step 6: Attach All Pieces Together

assembling shed ramp

Using your drill, attach the ledger board and the joists. You can also attach your braces if this applies to you from the above steps. Lastly, add the end piece (opposite of the ledger board) onto the joists to secure them.

Step 7: Attach Ledger Board To The Shed

Now, you can screw the ledger board into the shed. After it is secure, you can put a few exterior screws from the joists into the shed as well for extra support.

shed ramp installation

Photo credit: Source

Step 8: Check The Level

Check the level one last time, now that everything is attached to each other and the shed. If you are satisfied, you can start the next step!

building a shed ramp copy

Step 9: Backfill

Add the loose dirt back to the surrounding shed ramp area. Fill in the space around the ramp and make it as flush to the ground as you want it. As you backfill the beginning of the ramp, this is what will give you the most flush drive onto the ramp.

Step 10: Add Decking Board + Slats

Now, you will begin to see your ramp coming together as you add the final pieces. We recommend cutting your decking board slightly longer than your shed ramp base to give you a little overhang. You can always come back later and trim it up.

building a shed ramp

Step 11: Finished Shed Ramp

Step back! You did it! You should now be looking at your finished shed ramp, able to carry the weight of your supplies. If you need any assistance constructing this, feel free to give us a call! If you haven’t landed on a shed for your backyard space, we have a shed in stock in GA! Browse our selection today!

storage building with ramp

Photo credit: Source

Can I Buy A Shed Ramp Instead Of Making One?

Of course! You can purchase shed ramps from local hardware stores, as well as the place you bought your shed in most cases.

What Types Of Shed Ramps Are There?

Besides making your own wooden shed ramp, there are other ramp options that you may want to consider. Besides wood, here are the other two shed ramp material options you have.

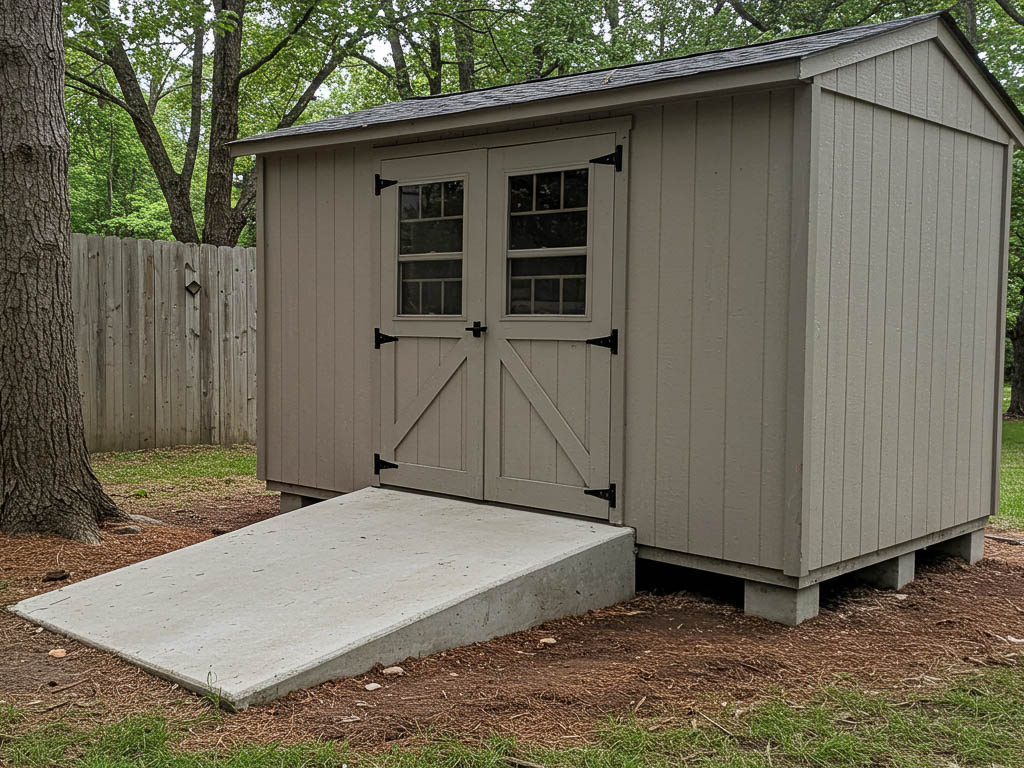

Concrete Shed Ramp

If you are thinking of DIYing, concrete ramps to take more time to construct than wooden ramps. Concrete shed ramps will evidently be stronger and last longer than wooden ramps if done correctly. If you are hiring a contractor to build this for you, be sure to remind them that they should tamp the concrete so that your ramp will drain better.

concrete shed ramp

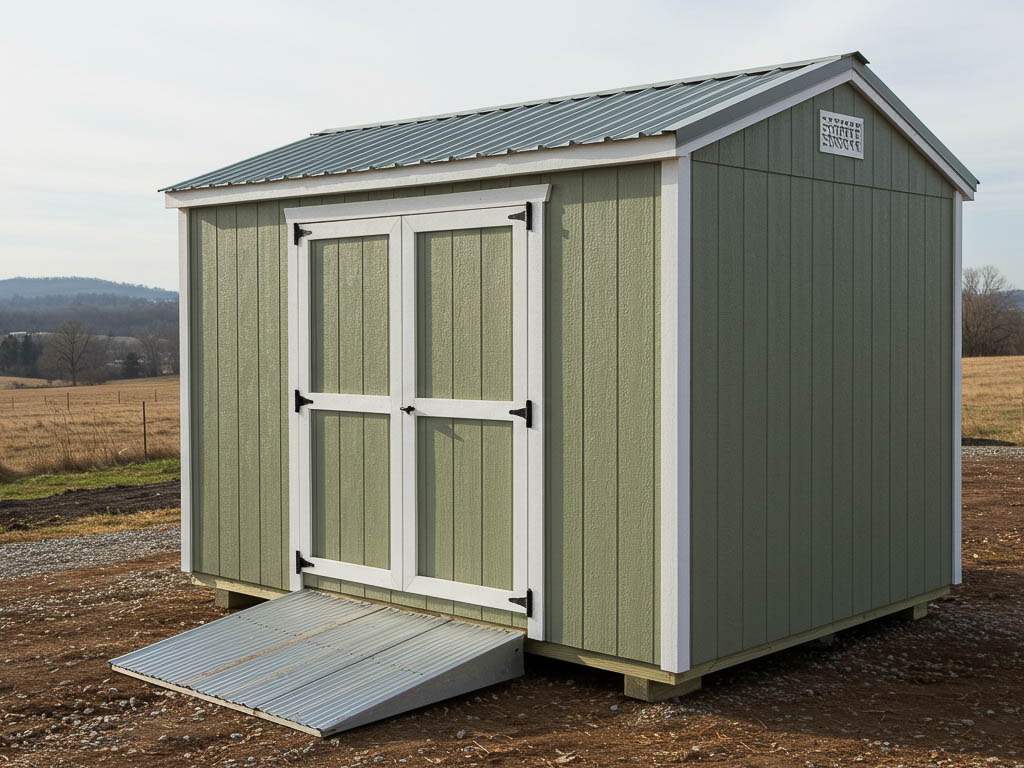

Aluminum Shed Ramp

Aluminum shed ramps are also very durable and an excellent option for many sheds. These ramps will also be less expensive than building a concrete ramp while still keeping away insects and rot. If you are DIYing, they will also take less time to create than concrete ramps.

aluminum shed ramps

Rubber Shed Ramp

While not as standard as the above ramps, rubber shed ramps can get the job done. They are not very expensive, but you will need to find the right size to purchase. There really isn’t a DIY option for rubber shed ramps.

rubber shed ramps

Our Sheds + Shed Ramps

At Gold Star Buildings, we don’t want you to have to go far to find the best shed ramp. That is why we offer shed ramps as an add-on feature for our sheds. Generally, we offer three different sizes of ramps, each with its own price point.

4×4 Ramp$110
6×4 Ramp$145
9×4 Ramp$265

Feel free to let us know if you are in need of a shed ramp, and we would love to talk to you about your specifications and desires! If you are interested in purchasing a shed and a ramp, visit our inventory or get a free estimate on any of our shed styles.
